RIFAST Elements

Lightweight & Clearance Fit Solutions

Weight Saving with Flat Installation Advantage

Our lightweight and clearance fit solutions are ideal for reducing application weight and for secure attachments with minimal space. With the choice between a nut or a bolt, these fastener options can help resolve many types of customer concerns.

RIFAST Elements

Lightweight & Clearance Fit Solutions

Weight Saving with Flat Installation Advantage

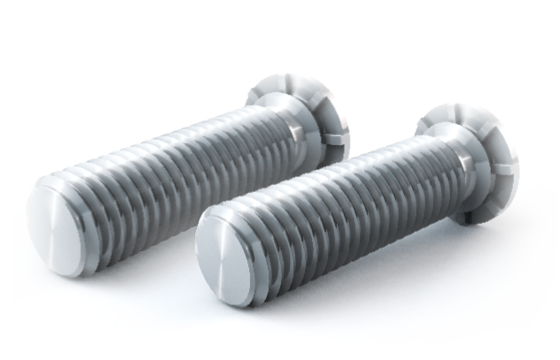

SEB

Flush mount staking bolt

With its compact, space-saving lightweight design, the RIFAST flush mount staking bolt is the proven solution for tight installation spaces. Whether this is with steels, aluminum or copper alloys, the staking bolt delivers no protrusion on the component upper side and flat contact surface for attachment of mating parts (no protrusion on component underside after joining process). Available with different thread ends in accordance with DIN EN ISO 4753.

For components with thicknesses between
1.1 and 5.0 mm

  • Maximum weight-optimization
  • Space-savings
  • Secure

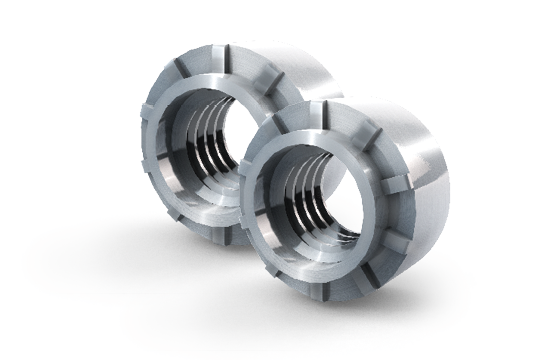

LBM

Lightweight nut

Up to 75% weight savings with the RIFAST LBM M5 in comparison to a conventional clinch nut, the RIFAST lightweight nut outperforms in maximum weight-optimization for metal parts, extruded profiles and castings. Whether this is with steels, aluminum or copper alloys, the lightweight nut offers a flat contact surface for attachment of mating parts, delivering on a simplified clinch nut portfolio – one clinch nut per size for various thicknesses.

For components with wall thicknesses between
1.2 and 4.0 mm

  • Maximum weight-optimization
  • Space-savings
  • Secure
