RIFAST Equipment

Press Shop Solutions

Preventing Offline Processes and Improving Efficiency

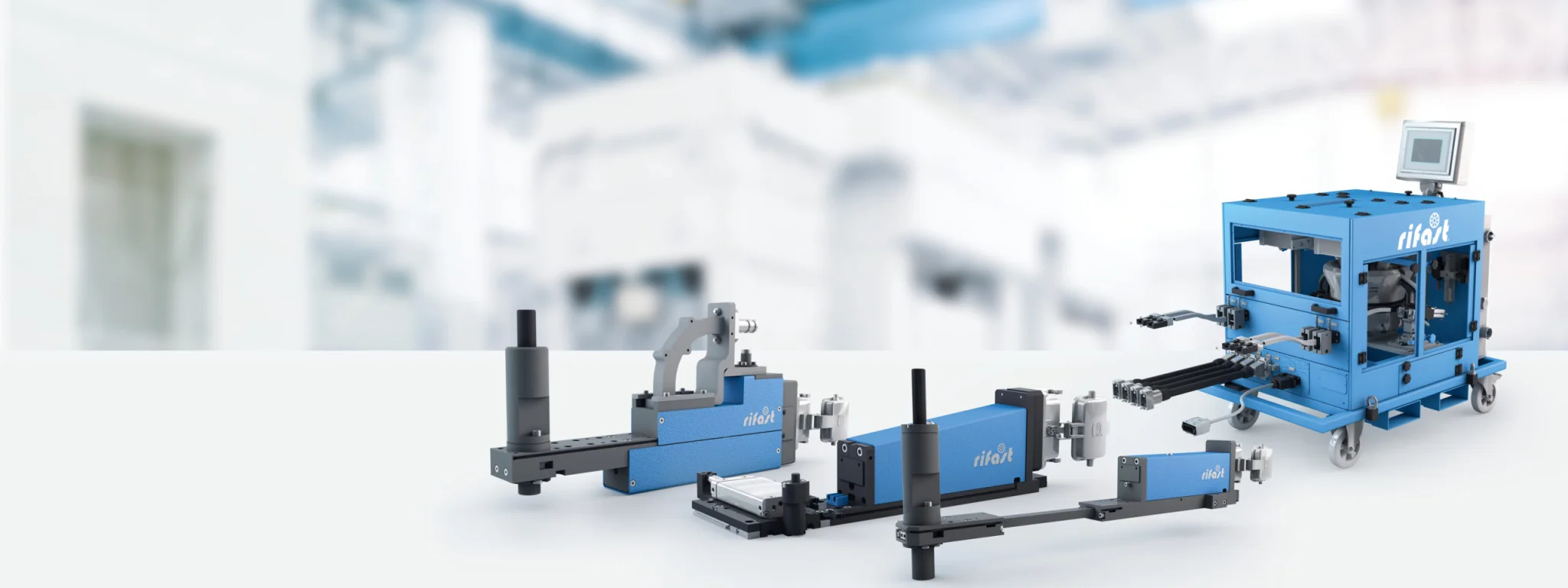

Punching heads are designed to support customer fastener installation requirements specific to configurations of the stamping. Punching heads can be mounted above or below the strip and supports nut or stud installation for each press stroke. Additionally, the distribution system, in-die feeding system, and junction box are used as support for the punching heads. The distribution system allows multiple punching heads to be fed. The in-die feeding system supplies the fasteners to the punching head equipment. Lastly, the junction box allows for communication between the punching head and the feeding system and reduces press change-over time during removal or installation of the press tool. These pieces of equipment are designed to make fastener installation easier for you when using RIFAST Fasteners.

RIFAST Equipment

Press shop solutions

Preventing Offline Processes and Improving Efficiency

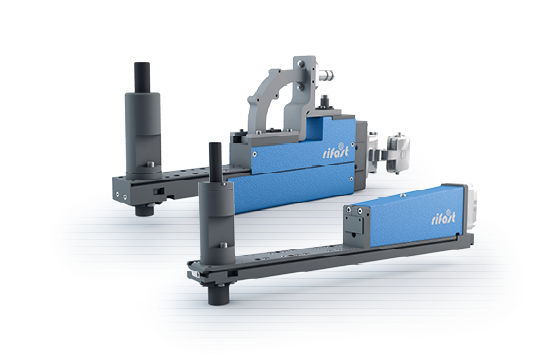

VMM/VMB

Punching head vertical

The robust, reliable and high-standardized platform for all RIFAST bolt and nut functional elements.

Proven in-die punching heads for progressive dies, transfer dies, tandem dies and presses

CLASSIC FIT: in-die punching heads for bolts (VMB) and nuts (VMM)

  • Proven and reliable technology
  • High standardization
  • For RIFAST bolt and nut
    functional elements

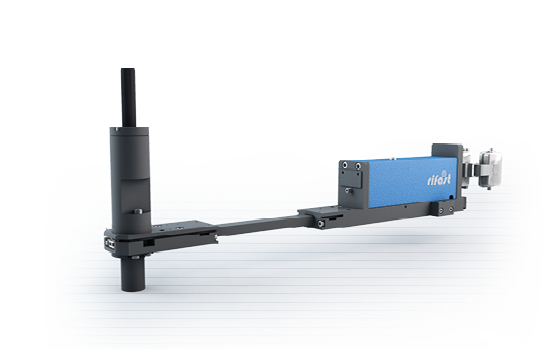

VKM

Punching head compact

The compact, robust, weight optimized and flexible platform for RIFAST nut functional elements.

Proven in-die punching heads for progressive dies, transfer dies, tandem dies and presses.

COMPACT FIT: in-die punching head for nuts (VKM)

  • High flexibility for large tools through flexible intermediate hose
  • Compact design of the linear advance and plunger end tooling allows for easy integration into customer stamping die
  • Weight savings compared to similar VMM
  • Available for RIFAST nut
    functional elements

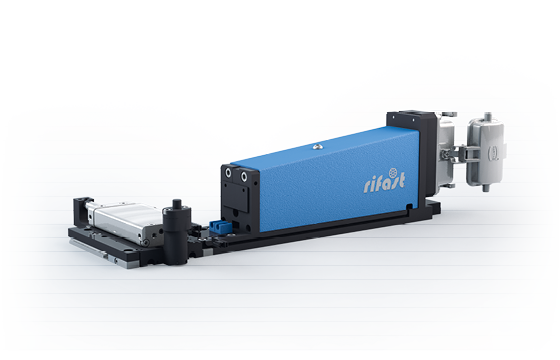

VQM

Punching head horizontal

The robust and compact platform for horizontal insertion of RIFAST nut functional elements.

Proven in-die punching heads for progressive dies, transfer dies, tandem dies and presses.

COMPLEX FIT: in-die punching head for horizontal insertion of nuts (VQM)

  • For the horizontal insertion
    of nut clinch fasteners also in
    tight spaces and undercut stamping sections
  • Perfect combination of proven standard components from VMM with special assemblies for horizontal insertion
  • Available for RIFAST clinch nuts

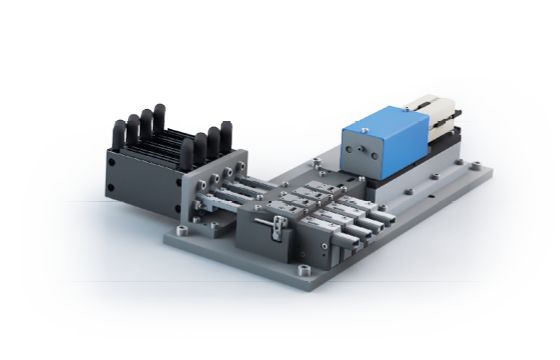

VDM

Distribution system

The compact, robust and cost optimized platform for installation of up to 16 RIFAST nut functional elements in one press stroke.

The distribution system (VDM) is the right choice for components with many of the same nut functional elements. In combination with a 4-lane standard feeding unit for nuts (ZEM), up to 4 distribution systems can be supplied with elements. With up to 4 compact active units, these can provide a maximum of 16 nuts for a joining process.

The RIFAST Distribution
system Advantage

  • Up to 16 RIFAST nuts in
    one press stroke
  • Compact system compares to multiple punching heads
  • Cost optimized platform
  • Less feeding units required

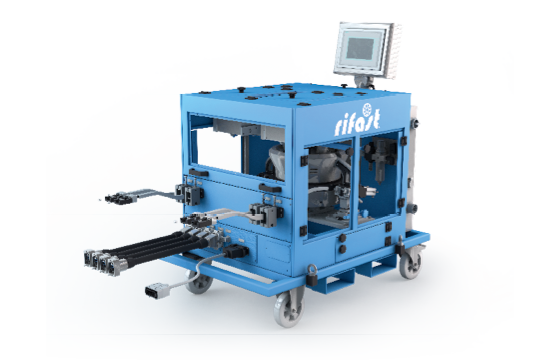

ZEM/ZEB

In die feeding system

The robust, reliable, high-standardized and fast feeding system platform in front of the press for all RIFAST bolt and nut functional elements. Up to 60 strokes/min.

For in-die processes under the press there are two types of feeding units available. The widely adopted feeding unit which is placed in front of the press or the feeding unit which can be placed on the press table.

The RIFAST feeding
unit advantage

  • Consistent performance through the use of robust and low-maintenance components
  • Simple, intuitive operation
    through HMI
  • Automatic detection of the connected punching heads
    or junction boxes, allowing for quick tool set-up and
    reduced risk of crashes

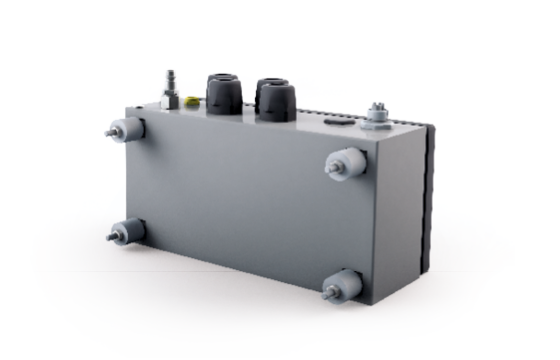

WZV

Junction box

The compact, robust and flexible junction box enables a quicker and more flexible tool setup from punching heads to feeding unit.

The junction box is used for an easier routing and connecting from the punching heads inside the tool to the feeder. The short multifunction hoses stay always connected at the punching heads for a faster tool set-up and a perfect pneumatic supply.
Because of less moving hoses from the feeder to the tool ensures a more reliable process. Due to the compact design it is possible to connect up to 4 punching heads with one WZV at one feeder.  All signals from the punching heads are send directly via bus system to the feeder.

The RIFAST Junction
box Advantage

  • Quick tool setup
  • Optimal air supply
    of punching heads
  • More reliable process
    because of less moving hoses

Sensor tester

For sensors in the punching head

During fault analysis and maintenance it is necessary to check the sensors in the punching head. Easy access to the punching head and the feeding unit is often not possible. With the small and handy sensor tester, sensors can be tested without removing the punching head and without a connection to the feeding unit.

Sensor Tester Advantage

  • Quick error analyses of the sensors without connection to the feeding unit
  • Cost reduction in maintenance
